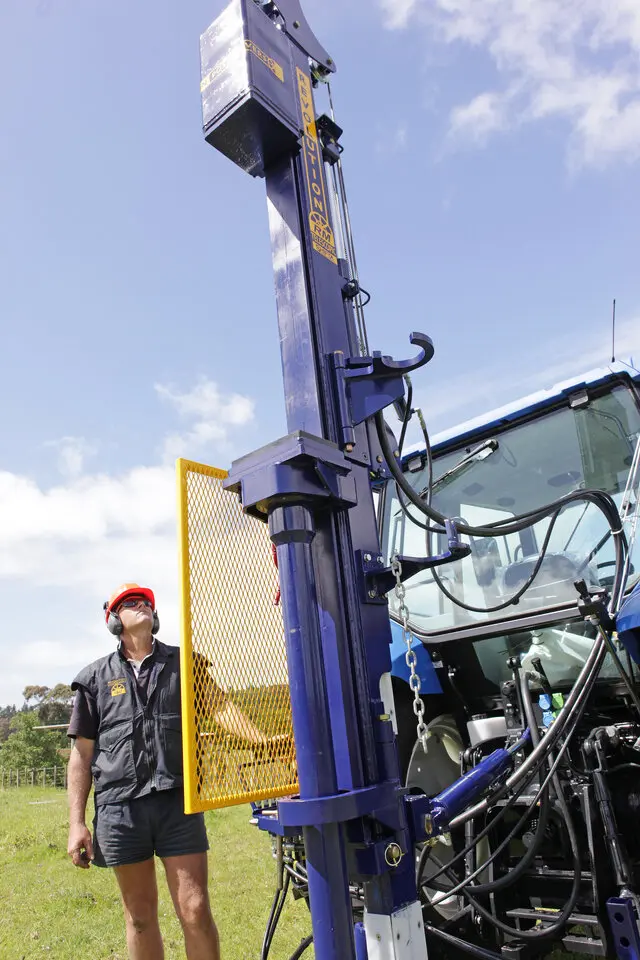

A Compact Rear Mount Post Driver.
The Telescopic RM takes Revolutions Telescopic mast and places it on a sturdy, strong rearmount base design. Added features include webbing for a low main hinge point and the use of UHMWPE wear pads and a UHMWPE bush around the 76 mm main hinge pin. The independent valve bank mounting is a huge asset as with all the Revolution range
Revolutions Telescopic mast creates balance and compactness. The ability to use the Telescopic mast at the height required when posting, lifting green strainers, drive foots into ground level all add up to ease of operation.
The Telescopic RM is a good entry level post driver for the telescopic range and appeals to fencing contractors and farmers who want a tidy efficient unit.
Features
- Compact, solid rear mount design.
- Revolutions telescopic mast technology.
- 3 point linkage.
- Replaceable UHMWPE antiwear pads and bushes.
- Sandblasted 2 pac paint, your machine looks better for longer.
- Independent valve bank mounting.
- Made locally in New Zealand.
The 180 - details & Specifications
TELESCOPIC MAST
- Vertical Mast height extended 5.1m
- Vertical Mast height compacted 3.3m
- Mast pulls out fence posts/strainers
- Will drive posts to ground level for footing
Rear Mount Base

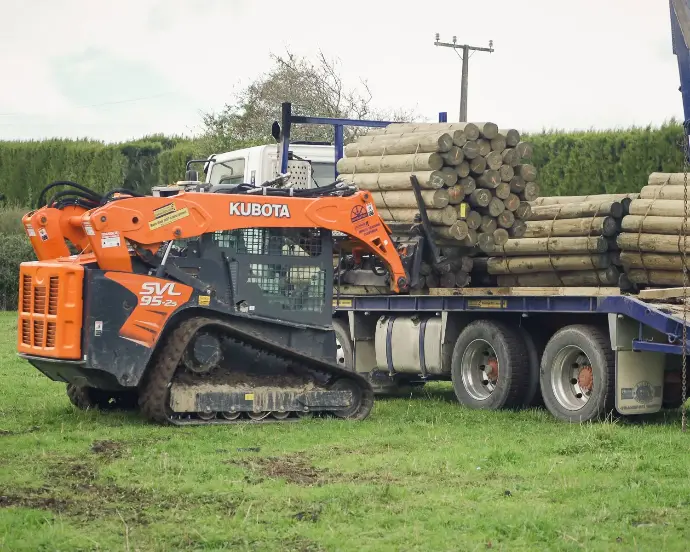

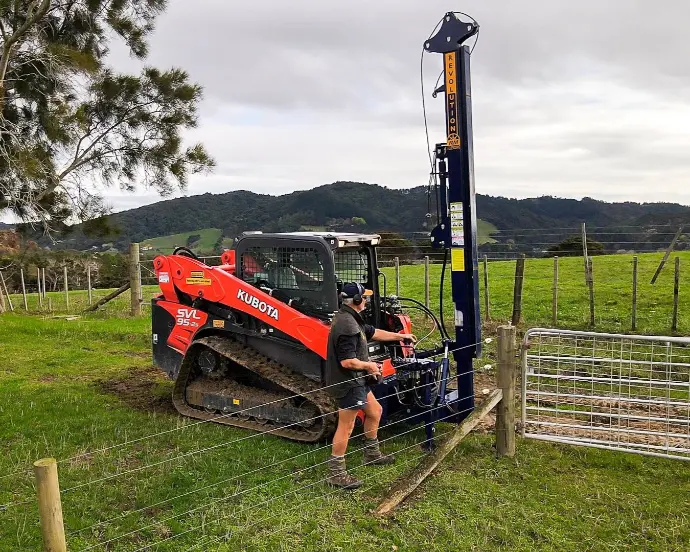

- Versatile with the ability to be mounted to tractor, skid steer, excavator, track machine and bulldozer.
- 3 Point linkage
- 76mm main hinge pin with UHMWPE antiwear bush
- Low set main hinge pin
- Independent valve bank mounting
OPTIONS
- 300kg hammer STD, heavier available.
- Automated Auger kit.
- Modified augers.
- Automated Rock Spike kit.
- 90mm Rock Spike.
- Rock Spike post cap.
Telescopic RM - Frequently Asked Questions
Does the RM have movement in the base?
Yes by adding the Shifta you can have 400 mm side to side movement in the base of this rear mount design.
